2025-03-17
Prototyping the box
2025-06-14

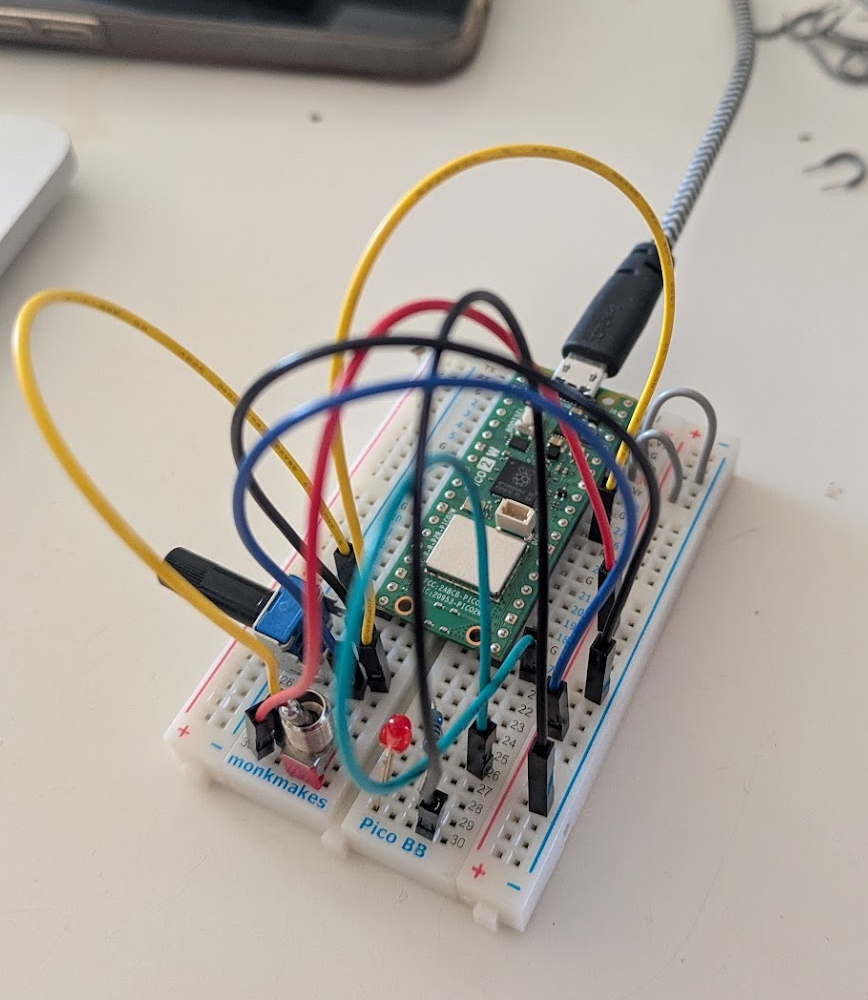

Assembling electronics on a breadboard to see if it works.
2025-07-26
Cardboard prototypes

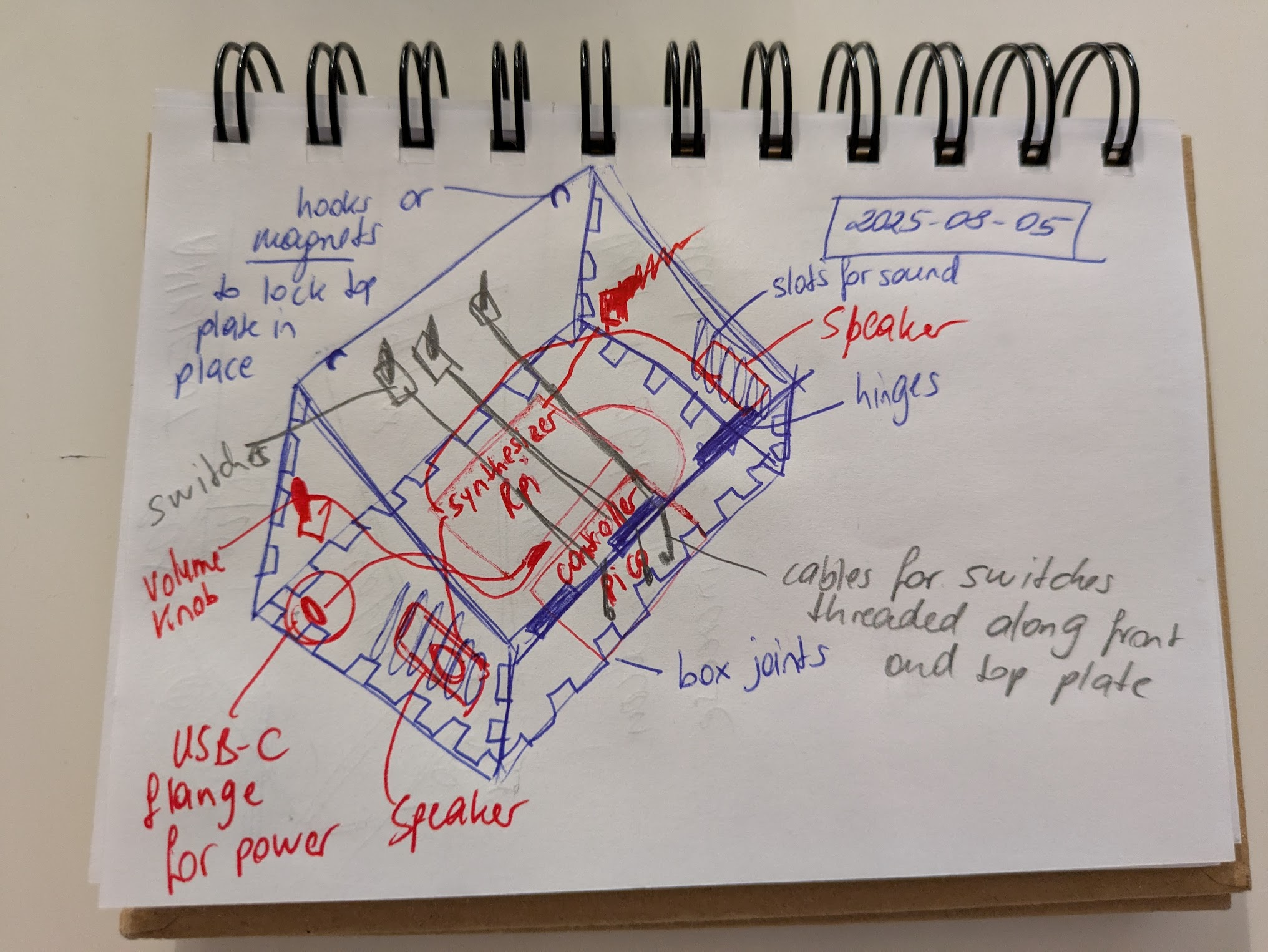

Make the first working prototype much simpler!

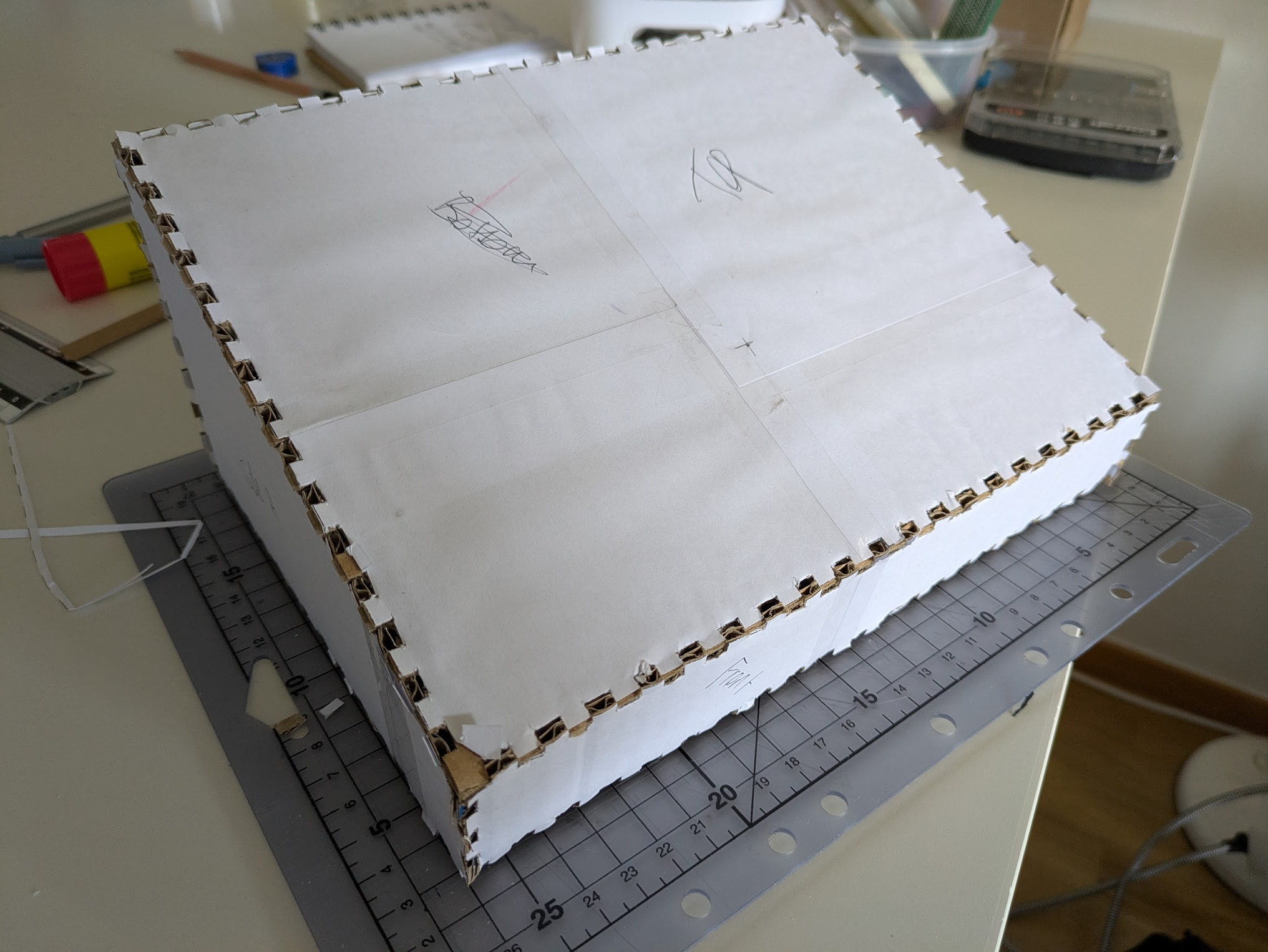

Version 1* - smaller version without side panels

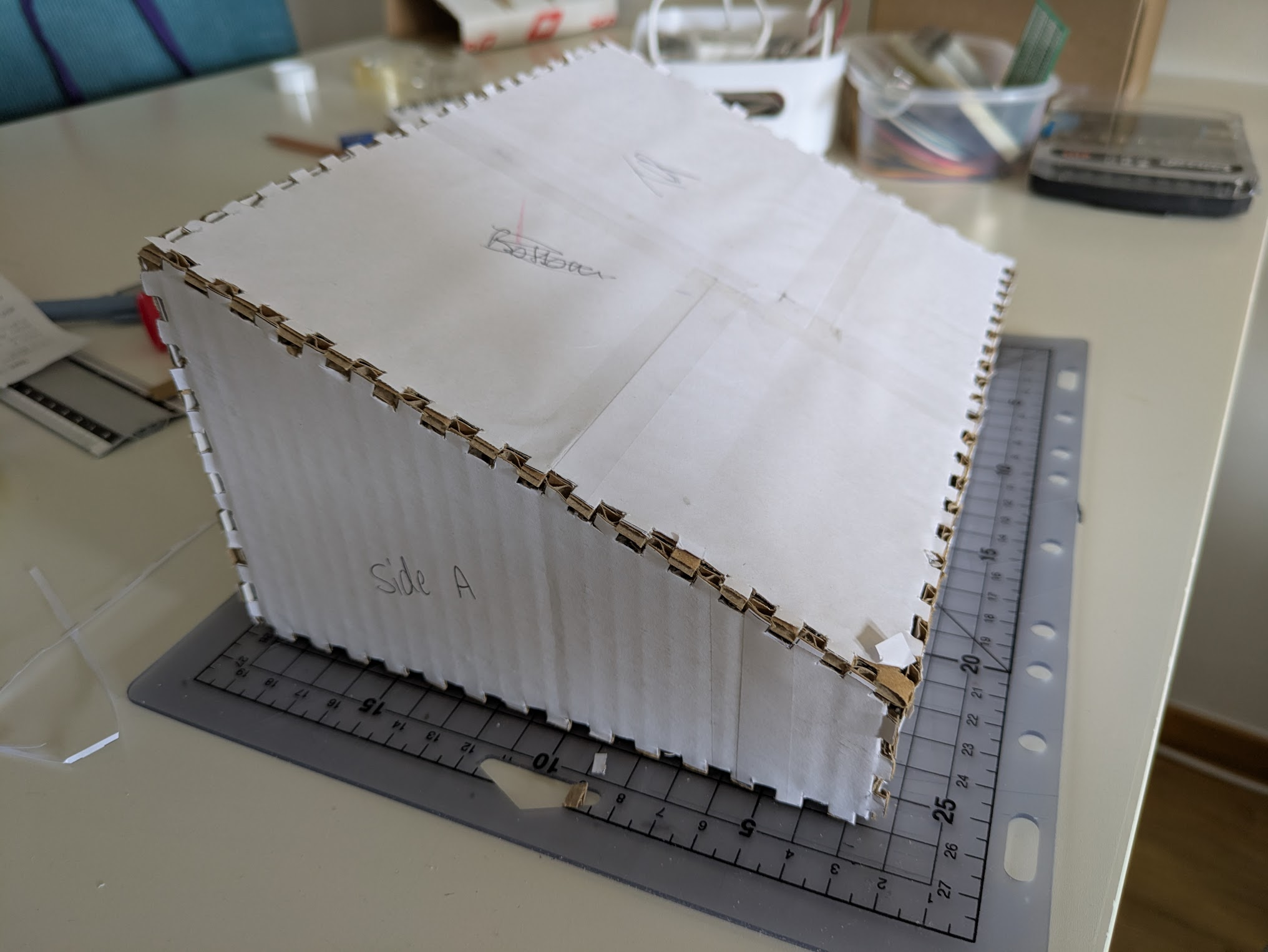

Version 2 - larger version with box joints
Designed with this online tool:

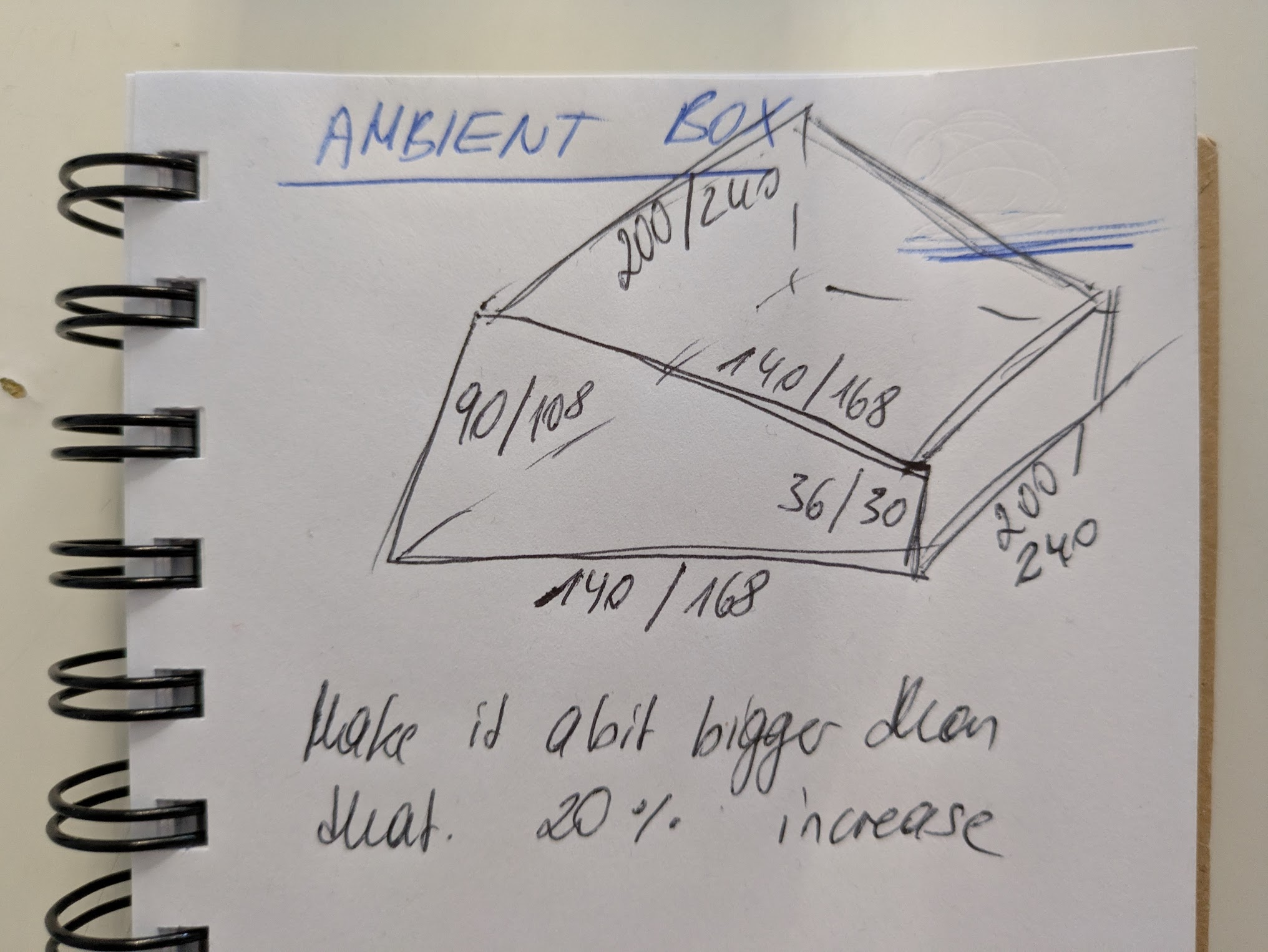

Comparison of the two versions
Smaller version is quite small, but on the larger version (20% bigger) the 8 switches on the top probably look a bit lost. If we fit all the electronics into the smaller version, then that’s the better size to go with.
